Description
MAIN FEATURES

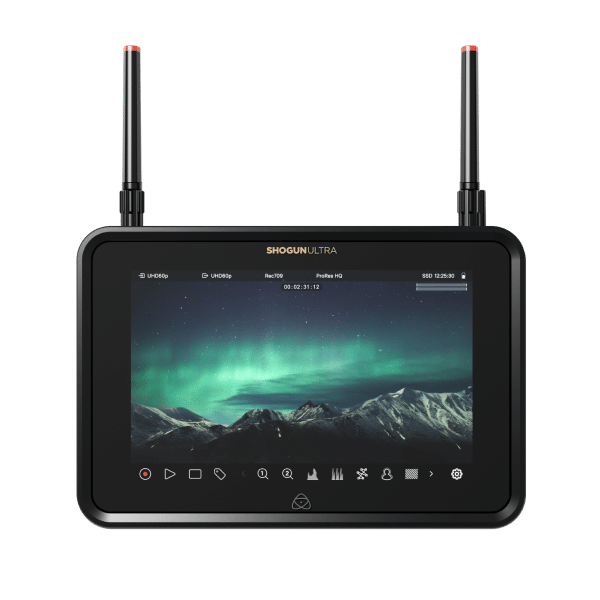

- Display Size 7 inches (HDR touchscreen, full-array local dimming)
- Brightness 1000 nit
- HDR Support HDR10, HLG
- Video Inputs 2 x 12G-SDI (Quad-Link 3G-SDI), 1 x HDMI 2.0; up to 4 SDI/HDMI for switching
- Video Outputs 2 x 12G-SDI, 1 x HDMI 2.0
- Recording Codecs Apple ProRes RAW HQ, Apple ProRes (HQ/422/LT), Avid DNxHR/DNxHD
- Max RAW Resolution 8Kp30, 4Kp120
- Recording Media CFexpress Type B
- ISO Recording Up to 4 simultaneous ISOs + switched program channel
- Connectivity Wi-Fi 6E, NDI HX3, ATOMOSphere, Frame.io, Dropbox
- Timecode AirGlu RF + Bluetooth; HDMI/SDI embedded; LTC via BNC
- Live Streaming Yes — simultaneous with local recording
- Audio I/O XLR 2-in/2-out via optional cable; 3.5mm headphone; HDMI/SDI embedded
- Power Dual NP-F/L-series battery plates; locking DC input
- 8Kp30 and 4Kp120 ProRes RAW HQ Recording — Captures full-resolution RAW data from compatible cameras via SDI or HDMI to CFexpress Type B media.
- Multi-Camera Switching and ISO Recording — Switches between four SDI or HDMI inputs while recording each feed as an independent ISO plus a program channel.
- Wi-Fi 6E Cloud Connectivity — Built-in Wi-Fi 6E for ATOMOSphere camera-to-cloud upload, Frame.io integration, and Dropbox transfer without additional hardware.
- NDI HX3 Video-Over-IP — Distributes video across a local network via NDI HX3 for remote monitoring, multi-room production, and integration with NDI-compatible systems.
- AirGlu Wireless Timecode — RF and Bluetooth dual-mode timecode synchronization for cable-free multi-camera synchronization.
- Live Streaming with Simultaneous Recording — Encodes a live stream while recording locally to CFexpress, eliminating the need for a separate streaming device.
- 1000-Nit HDR Touchscreen — 7-inch panel with full-array local dimming, HDR10 and HLG monitoring, and custom 3D LUT support for on-set color decisions.
- Professional Monitoring Toolset — Custom 3D LUTs, ARRI false color, focus peaking, waveform, vectorscope, zebra, frame guides, anamorphic de-squeeze (1.25x–2x).
- CFexpress Type B Media — High-throughput recording media required for 8K and high-frame-rate 4K workflows.
- Dual NP-F Battery Power — Two L-series battery slots for hot-swap continuous field operation.
